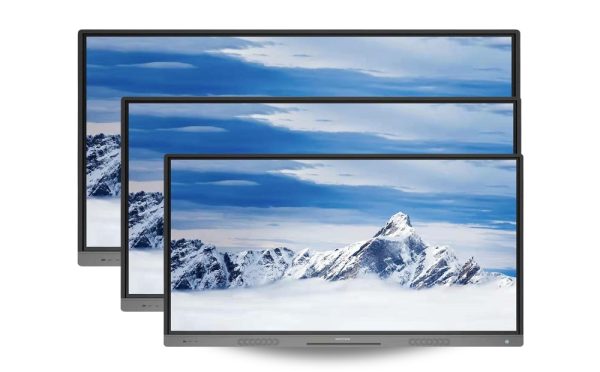

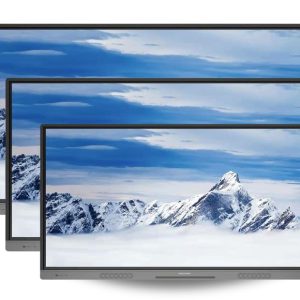

Smart Interactive Flat Panel – Specktron UDX-86S2 Pro Series
Key Features of Specktron UDX-86S2 Pro Series Smart Interactive Flat Panel:
- Display: Massive 86-inch D-LED screen with Ultra HD 4K resolution (3840 x 2160) for outstanding clarity.
- Touch Technology: Supports 10-point writing and 20 point multi touch for interactive collaboration.
- Durability: Features toughened Level 7 Mohs glass for exceptional strength and safety.
- Brightness & Contrast: 330 cd/m² brightness and 1200:1 contrast ratio for vibrant visuals.
- Dual OS Support: Compatible with both Windows and Android for versatile operation.
- High Performance: Equipped with an optional detachable PC module with Intel Core i5/i7 processors, up to 8GB DDR4 RAM, and storage options of 500GB HDD or 256GB SSD.
- Built-in Audio: Includes 2 x 12W speakers for superior sound quality.
- Connectivity: Offers multiple ports such as HDMI, USB, and VGA for easy device integration.
- Modern Design: Sleek, professional look ideal for large-scale classrooms, conference rooms, and collaborative setups.
Specktron UDX-86S2 Pro perfect for creating an engaging and dynamic environment for interactive learning and productive meetings!
- Description
- Specifications
Description
The Specktron UDX-86S2 Pro Series is a premium interactive flat panel designed for large scale collaboration and presentations. It features an 86-inch D-LED display with stunning 4K resolution (3840 x 2160), a brightness of 330 cd/m², and a contrast ratio of 1200:1 for vibrant visuals. The panel supports multi-touch functionality with 10-point writing and 20-point touch, powered by an infrared sensing system. It includes toughened glass with Level 7 Mohs protection for durability.
The device is equipped with a detachable PC module, offering options for Intel Core i5 or i7 processors, up to 8GB DDR4 RAM, and storage options ranging from 500GB HDD to 256GB SSD. It runs on Windows and Android operating systems, ensuring versatility. Additional features include built-in 2 x 12W speakers, multiple connectivity options (HDMI, USB, VGA, and more), and a sleek design for seamless integration into any environment. Perfect for interactive learning, professional collaboration, and dynamic presentations!
| DISPLAY | |
| Screen Type | D-LED |
| Aspect Ratio | 16:9 |
| Size | 86 inch |
| Resolution | 3840(H) x 2160(V) |
| Response Time | 8ms |
| Refreshing Frequency | 60Hz |
| Display colour | 1.07B (10bit) |
| Pixel Pitch | 0.372(H) x 0.0.372(V) |
| Brightness | 400cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° (H/V) |
| Lifetime | 50,000 hours |
| ANDROID SYSTEM | |
| OS | Android 14 |
| RAM | 16 GB |
| ROM | 256 GB |
| WIRELESS | |
| Wi-Fi | 802.11ax (Wi-Fi 6) |
| Bluetooth
Audio |
5.3 |
| Speaker Type | Built-in Speaker |
| Output Power | 20W X 2 |
| POWER | |
| Power Requirements | AC100 V ~ 240 V, 50-60 Hz |
| Standby Power | 0.5W |
| Overall Power (typ.) | 240W |
| TOUCH SYSTEM | |
| System | Windows 10/11, Linux, Mac, Chrome, Android |
| Sensing Type | Infrared recognition – 50 points- Pressure sensitive |
| Gesture Support/ Palm Rejection | Yes/ Yes |
| Response Time | 2.5ms |
| Accuracy | 1mm |
| Minimum Object Size | 2mm |
| Interface | USB |
| Surface | Anti-Glare/ Anti-Fingerprint |
| Output Coordinates | 32767 x 32767 |
| DISPLAY CONNECTORS | |
| HDMI-In / HDMI-Out | 3/ 1 |
| VGA | 1 |
| Audio-In / Audio-Out | 1 / 1 |
| USB-A 2.0 / USB-A 3.0 | 1/ 4 |
| USB-C (Display / Touch / Power 65W) | 1 |
| USB-B (Touch) | 2 |
| SPDIF | 1 |
| RS232 | 1 |
| Lan Port (RJ45)-In / Out | 1/ 1 |
| DP-In | 1 |
| TF-Card | 1 |
| Camera & Mic | |
| Camera | 50MP AI camera |
| Microphone | 8 Array Mic |
| PC MODULE (Optional) | |
| Type | Detachable PC module |
| Model | CT-22 Series |
| CPU | Intel®Core™ i5 /i7 |
| RAM | 8 GB / 16 GB Optional |
| SSD | 256 GB / 512 GB Optional |
| Graphics | Intel Iris Xe Graphics |
| Networking | Intel Gigabit Ethernet |
| Wi-Fi | 802.11ac (2.4 GHz/5 GHz) |
| Bluetooth | 5.2 |
| USB Type-C 2.0 | 1 |
| USB 3.2 / 2.0 | 2 / 2 |
| LAN (RJ45) | 1 |
| HDMI Out / DP Out | 1 / 1 |
| Line Out / Mic In | 1 / 1 |
| PHYSICAL SPECIFICATIONS | |
| Dimension(L x H x D) | 1957×1178.5×99.4mm |
| Dimension (package) L x W x H | 2110×225×1304mm |
| Net Weight | 54.55kg |
| Gross Weight | 66.10kg |
| VESA | 800 × 600mm |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature | 0 ̊C – 40 ̊C |
| Operating Humidity | 10%～90% RH Non-Condensing |
| Storage Temperature | -20℃～60℃ |
| Storage Humidity | 10%～90% RH NonCondensing |
