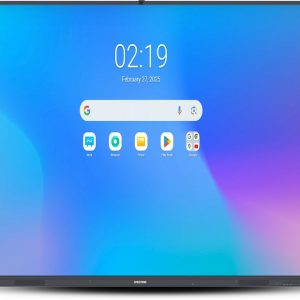

Smart Interactive Flat Panel – Specktron UDX-98S2 Pro Series
Specktron UDX-98S2 Pro Series Smart Interactive Flat Panel:
- Display: Expansive 98-inch D-LED screen with Ultra HD 4K resolution (3840 x 2160) for exceptional clarity.
- Touch Technology: Supports 10-point writing and 20-point multi-touch for seamless collaboration.
- Durability: Toughened Level 7 Mohs glass for superior strength and safety.
- Brightness & Contrast: 330 cd/m² brightness and 1200:1 contrast ratio for vibrant and sharp visuals.
- Dual OS Support: Compatible with both Windows and Android for versatile operation.
- High Performance: Equipped with an optional detachable PC module featuring Intel Core i5/i7 processors, up to 8GB DDR4 RAM, and storage options of 500GB HDD or 256GB SSD.
- Built-in Audio: Integrated 2 x 12W speakers for immersive sound quality.
- Connectivity: Offers multiple ports, including HDMI, USB, and VGA, for easy device integration.
- Modern Design: Sleek and professional, ideal for large-scale classrooms, conference rooms, and collaborative setups.
This panel is perfect for creating an engaging and dynamic environment for interactive learning and productive meetings!
- Description
- Specifications
Description
The Specktron UDX-98S2 Pro Series is an advanced interactive flat panel designed for large scale collaboration and presentations. It features a massive 98-inch D-LED display with Ultra HD 4K resolution (3840 x 2160), offering outstanding visual clarity. The panel supports 10-point writing and 20-point multi-touch functionality through an infrared sensing system, ensuring smooth interactivity. Its toughened Level 7 Mohs glass provides durability and safety.
The detachable PC module includes options for Intel Core i5/i7 processors, up to 8GB DDR4 RAM, and storage choices of 500GB HDD or 256GB SSD. With dual operating system support for Windows and Android, it ensures versatility and adaptability. Additional features include built-in 2 x 12W speakers, multiple connectivity ports (HDMI, USB, VGA, etc.), and a sleek design tailored for professional environments. Perfect for immersive learning, productive meetings, and dynamic collaboration!
| DISPLAY | |
| Screen Type | D-LED |
| Aspect Ratio | 16:9 |
| Size | 86 inch |
| Resolution | 3840(H) x 2160(V) |
| Response Time | 8ms |
| Refreshing Frequency | 60Hz |
| Display colour | 1.07B (10bit) |
| Pixel Pitch | 0.5622(H)×0.5622(V)mm |
| Brightness | 400cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° (H/V) |
| Lifetime | 50,000 hours |
| ANDROID SYSTEM | |
| OS | Android 14 |
| RAM | 16 GB |
| ROM | 256 GB |
| WIRELESS | |
| Wi-Fi | 802.11ax (Wi-Fi 6) |
| Bluetooth
Audio |
5.0 |
| Speaker Type | Built-in Speaker |
| Output Power | 16W X 2 |
| POWER | |
| Power Requirements | AC100 V ~ 240 V, 50-60 Hz |
| Standby Power | ≤0.5W |
| Overall Power (typ.) | 360W |
| TOUCH SYSTEM | |
| System | Windows 10/11, Linux, Mac, Chrome, Android |
| Sensing Type | Infrared recognition – 40 points |
| Gesture Support/ Palm Rejection | Yes/ Yes |
| Response Time | 5ms |
| Accuracy | 1.5mm |
| Minimum Object Size | 3mm |
| Interface | USB |
| Surface | 4mm Toughened Glass |
| Output Coordinates | 32767 x 32767 |
| DISPLAY CONNECTORS | |
| HDMI-In / HDMI-Out | 3/ 1 |
| VGA | 1 |
| Audio-In / Audio-Out | 1 / 1 |
| USB-A 2.0 / USB-A 3.0 | 1/ 4 |
| USB-C (Display / Touch / Power 65W) | 1 |
| USB-B (Touch) | 2 |
| SPDIF | 1 |
| RS232 | 1 |
| Lan Port (RJ45)-In / Out | 1/ 1 |
| OPTIONAL ACCESSORIES | |
| Wireless Dongle | |
| Camera with Mic | |
| PC MODULE (Optional) | |
| Type | Detachable PC module |
| Model | CT-22 Series |
| CPU | Intel®Core™ i5 /i7 |
| RAM | 8 GB / 16 GB Optional |
| SSD | 256 GB / 512 GB Optional |
| Graphics | Intel®HD Graphics |
| Networking | 10/100/1000M |
| Wi-Fi | 802.11ac (2.4 GHz/5 GHz) |
| Bluetooth | 4.2 |
| USB Type-C 2.0 | 1 |
| USB 3.2 / 2.0 | 1/ 2 |
| LAN (RJ45) | 1 |
| HDMI Out | 1 |
| Line Out / Mic In | 1 / 1 |
| PHYSICAL SPECIFICATIONS | |
| Dimension(L x H x D) | (2245×1323×92mm) |
| Dimension (package) L x W x H | (2406×280×1474) mm |
| Net Weight | 98.5 kg |
| Gross Weight | 128.1 kg |
| VESA | 800 x 600 mm |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature | 0 ̊C – 40 ̊C |
| Operating Humidity | 10%～90% RH Non-Condensing |
| Storage Temperature | -20℃～60℃ |
| Storage Humidity | 10%～90% RH NonCondensing |
