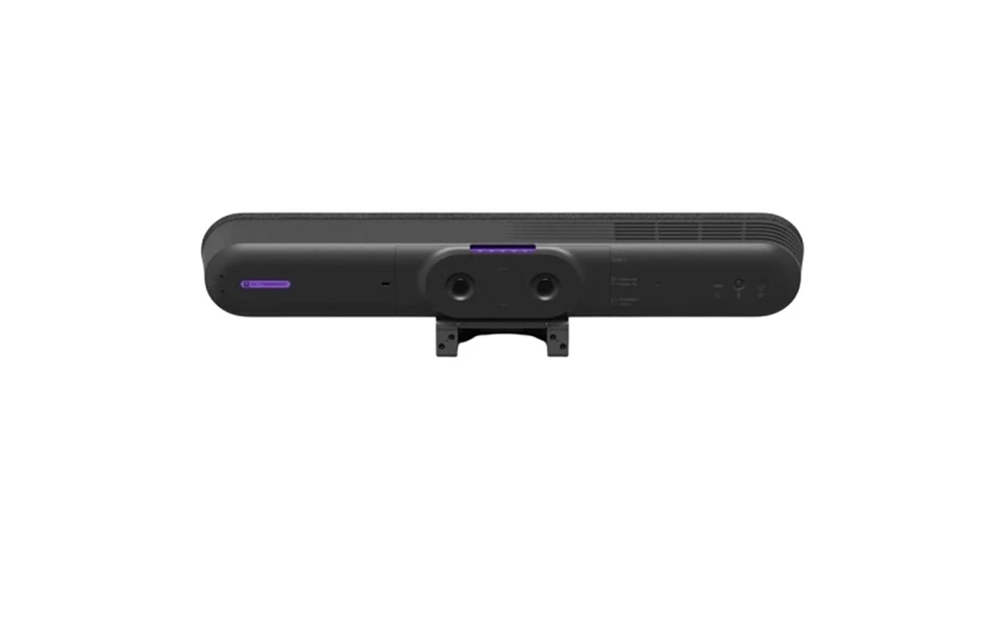

Logitech Rally Bar Huddle
The Logitech Rally Bar Huddle is an all-in-one video conferencing solution designed for huddle and small meeting rooms. Here are its key features:
- AI Video Intelligence: Ensures everyone is seen clearly with advanced video capabilities, including digital pan, tilt, and zoom (PTZ) with up to 4x zoom.
- Superior Audio: Features a 6-microphone array for excellent sound pickup, noise suppression, and a full-range speaker for clear audio.
- Flexible Deployment: Can be used as a standalone appliance, in USB mode connected to a PC, or as a BYOD (Bring Your Own Device) solution.
- Quick Setup and Management: Easy to install and manage with Logitech Sync and Collab OS, offering seamless integration with existing systems.
- Wide Compatibility: Works with leading video conferencing platforms, ensuring a smooth hybrid meeting experience.
- Eco-Friendly Design: Made with up to 42% post-consumer recycled plastic, reflecting Logitech’s commitment to sustainability.
- Privacy Features: Includes an automatic motorized privacy shutter for added security.
Logitech Rally Bar Huddle is perfect for creating equitable and efficient hybrid meeting experiences.
- Description
- Specifications
Description
All In One Video Conferencing System in Pakistan – Logitech Rally Bar Huddle:
Designed to deliver video meetings with ease, Rally Bar Huddle is quick to set up in person or remotely, simple to manage, and easy to integrate with your existing video conferencing solutions through Collab OS. Rally Bar Huddle works with most platforms you use to connect hybrid teams, ensuring an effortless experience from the home to the office, and everywhere in between. Combine Rally Bar Huddle with Tap IP and Tap Scheduler to make it easy to schedule, join, and participate in video meetings.
Specs & Details
Dimensions
Width: 21.6 in (549.6 mm)
Height: 3.1 in (78.9 mm)
Depth: 3.0 in (76.0 mm)
Weight: 3.97 lb (1.8 kg)
General Specifications
- Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech Collab OS platform
- Enclosure: All-in-one enclosure with field replaceable front cover
- Device Management: Logitech Sync
- Displays Supported: 1 (2nd display support is coming soon)
- Display Resolution: 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
- Digital Pan: ±48° at 4x zoom
- Digital Tilt: ±32° at 4x zoom
- Zoom: 4X HD digital zoom
- Diagonal Field of View: 120°
- Horizontal Field of View: 113°
- Vertical Field of View: 80°
- Resolution: 4K
Speakers
- Driver: 2.2 in(55 mm) with bass reflex enclosure and patented suspension design
- Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
- Rated Power: 8W
- THD at 1W, 1kHz: <2%
- Speaker Sampling Rate: 48KHz
- Impedance: 4 Ohms
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: -36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48 kHz
- Pickup Range: Up to 23 ft (7m)
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
Interfaces
- HDMI Out: 1
- HDMI In: 1
- USB: 1x Type A USB 3.1, 1x Type C USB 3.1
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac
- Bluetooth: Bluetooth® Low Energy
Power and Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 2.1A
- Power Supply Dimensions: 4.48 in (114 mm) x 1.85 in (47 mm) x 1.27 in (32.3 mm)
- DC Cable: 5 ft (1.5 m)
- AC Cable: 3.3 ft (1 m)
- HDMI 1.4 Cable: 6.5 ft (2 m)
- USB A to USB C 3.0 Cable: 7.2 ft (2.2 m)
Environmental
- Operating Temperature: 0 to 40°C
- Storage Temperature: -25 to 70°C
- Humidity: 10 to 90%
Security
- File Based Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
Accessories
- Covers: Rally Bar Huddle Front Cover-Cleanable, Off-White Fabric
- Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
- Touch Controller: Logitech Tap and Tap IP
Compatibility
Internet Connection: Wired or wireless
USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
Appliance Mode: Room solution software license (not included)
In the Box
- Rally Bar Huddle
- Multi-Mount
- Power supply
- AC power cord
- HDMI cable
- USB cable
